Dual-Axis Chart

A dual-axis chart displays two or more Y-axes on the same chart, typically combining bar and line charts for intuitive comparison. This type of chart is ideal for:

  • Comparing two sets of data with significantly different scales
  • Showing trends with multiple metrics
  • Year-over-year or period-over-period analysis

Below is an example of how to create a dual-axis chart.

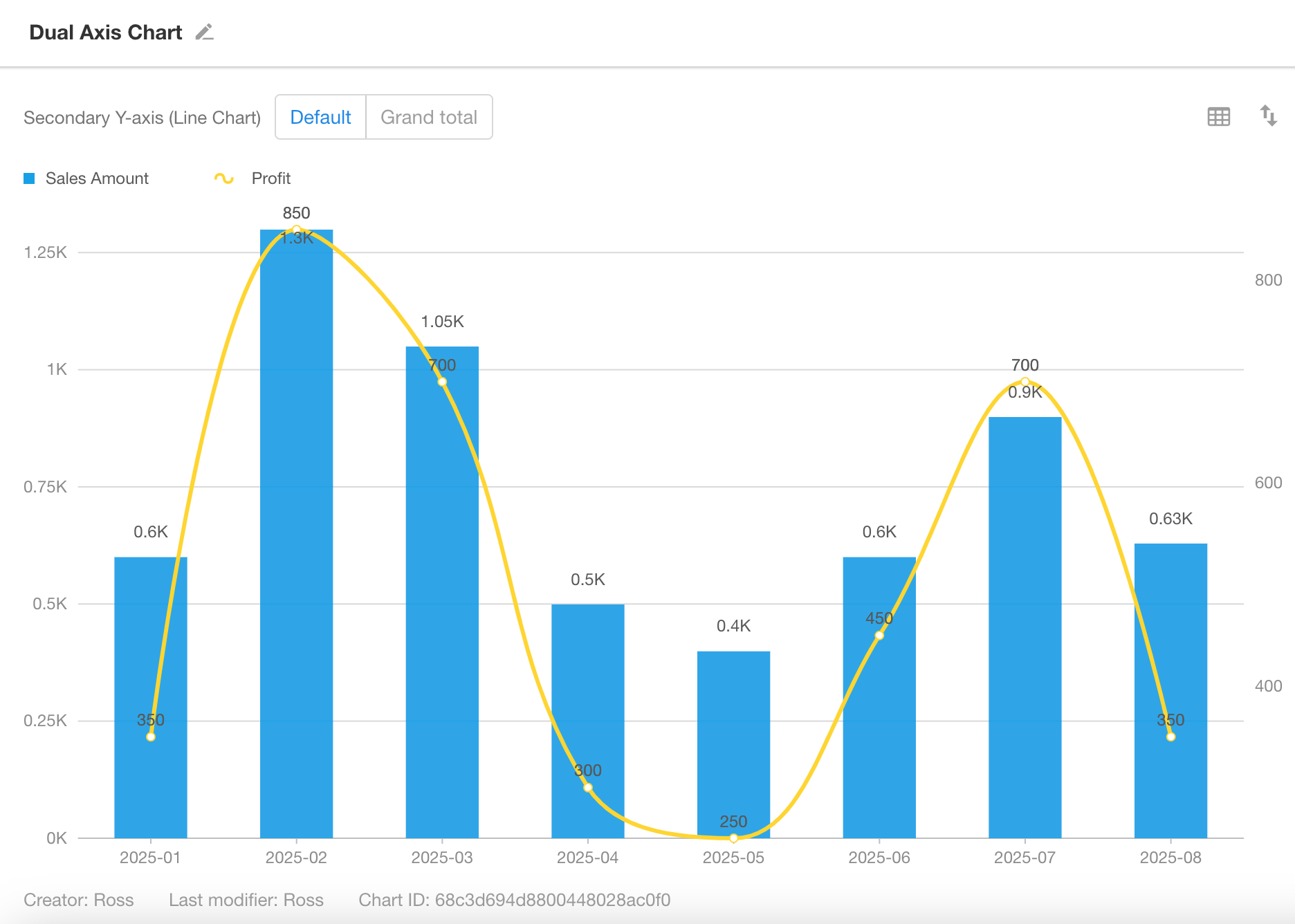

Example: Compare Monthly Sales and Profit for the Current Year​

  • Data Scope: Filter records in the “Orders” worksheet where the “Signed Date” is within the current year.

  • X-Axis: “Signed Date” field

  • Granularity: Monthly

  • Left Y-Axis: Monthly sales

  • Right Y-Axis: Monthly profit

Chart Configuration​

1. Create a New Chart​

2. Set the Data Scope​

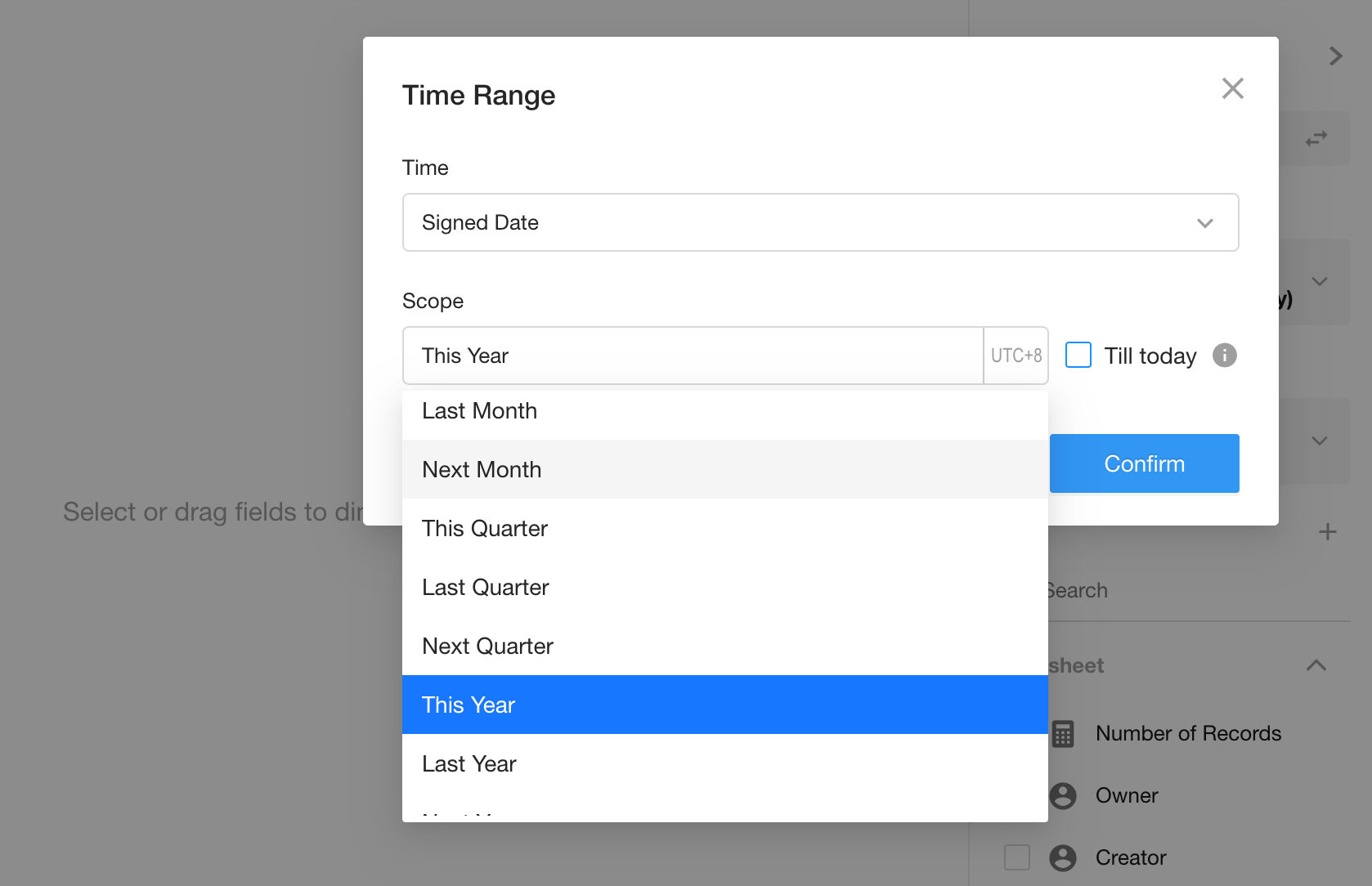

Filter records in the “Orders” worksheet where the “Signed Date” is within the current year.

You can also apply additional filters as needed.

3. Configure the X-Axis​

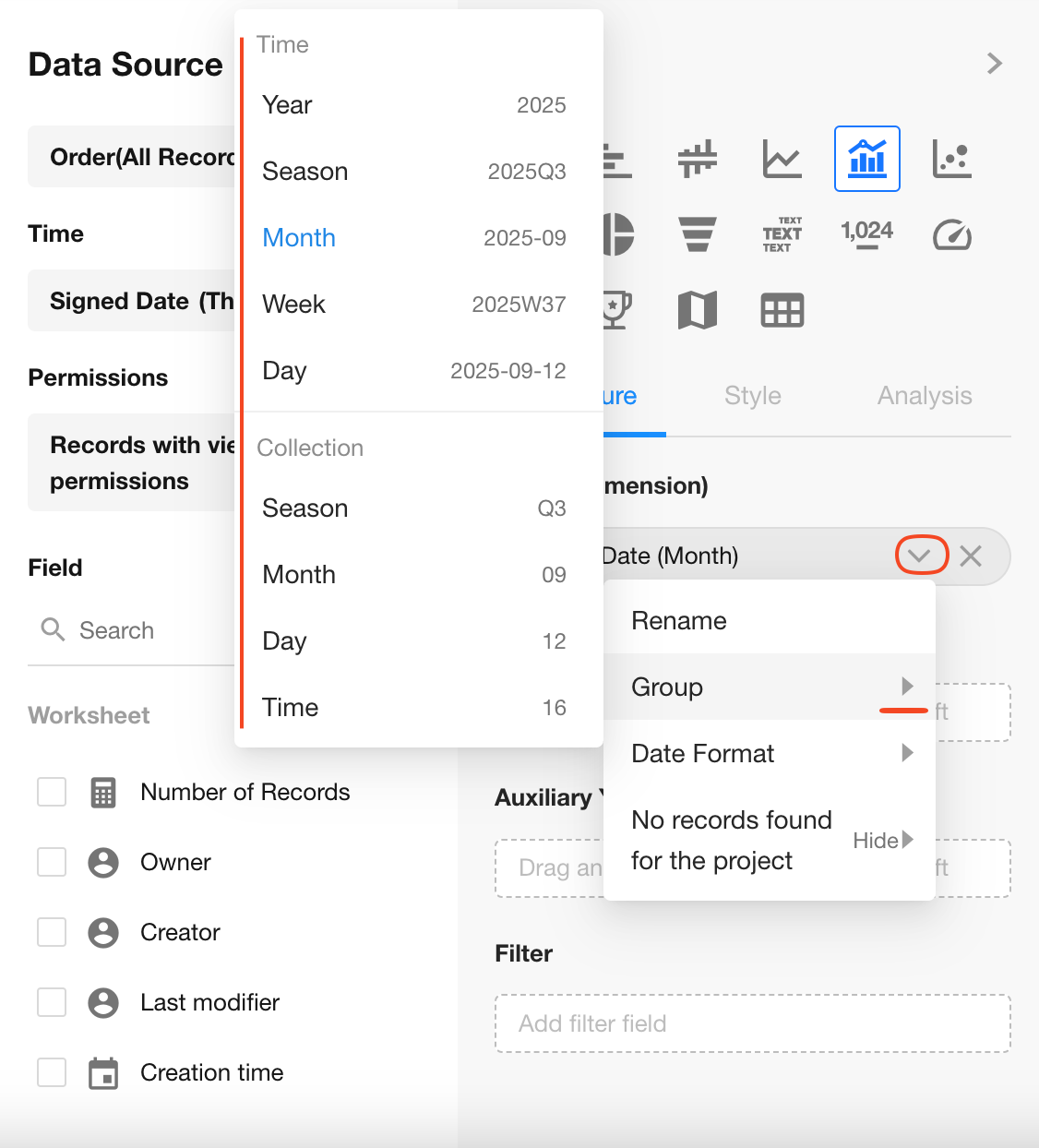

Select the “Signed Date” field, and set granularity to Monthly.

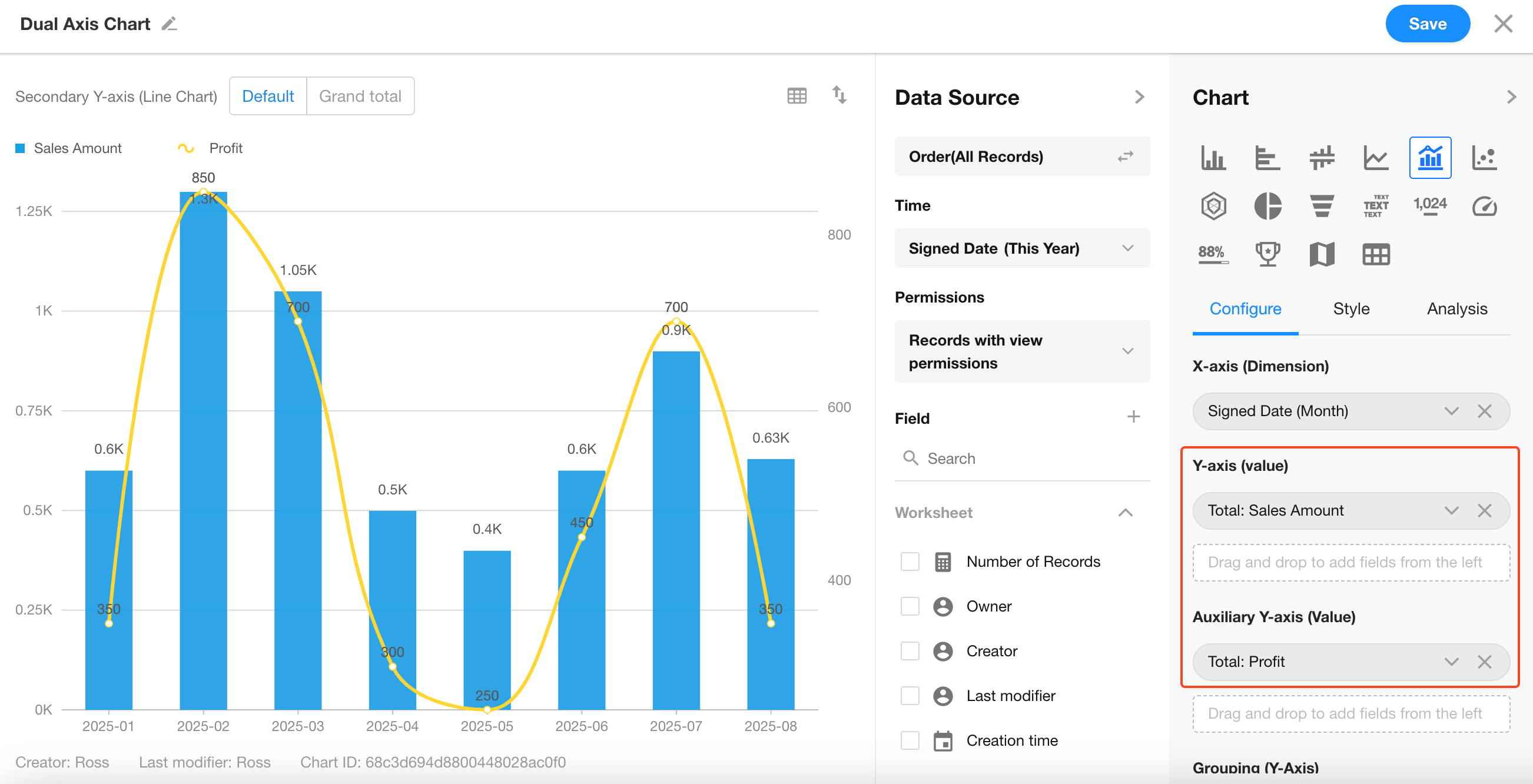

4. Configure Left and Right Y-Axes​

Left Y-Axis: Total monthly Sales Amount

Right Y-Axis: Total monthly Profit

Notes on Dual-Axis Behavior

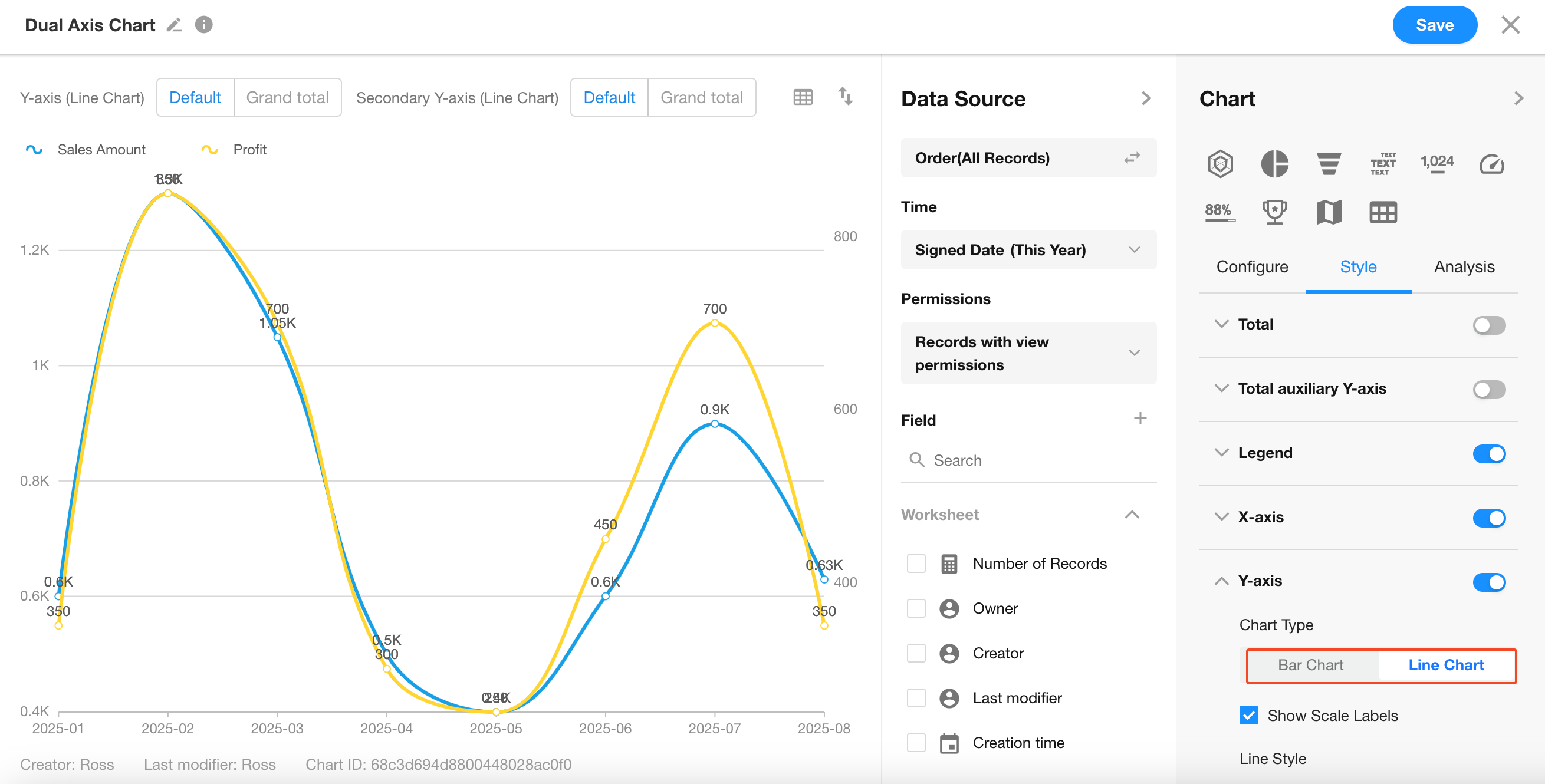

  1. The left Y-axis can be displayed as a bar chart or line chart. The right Y-axis is always a line chart.

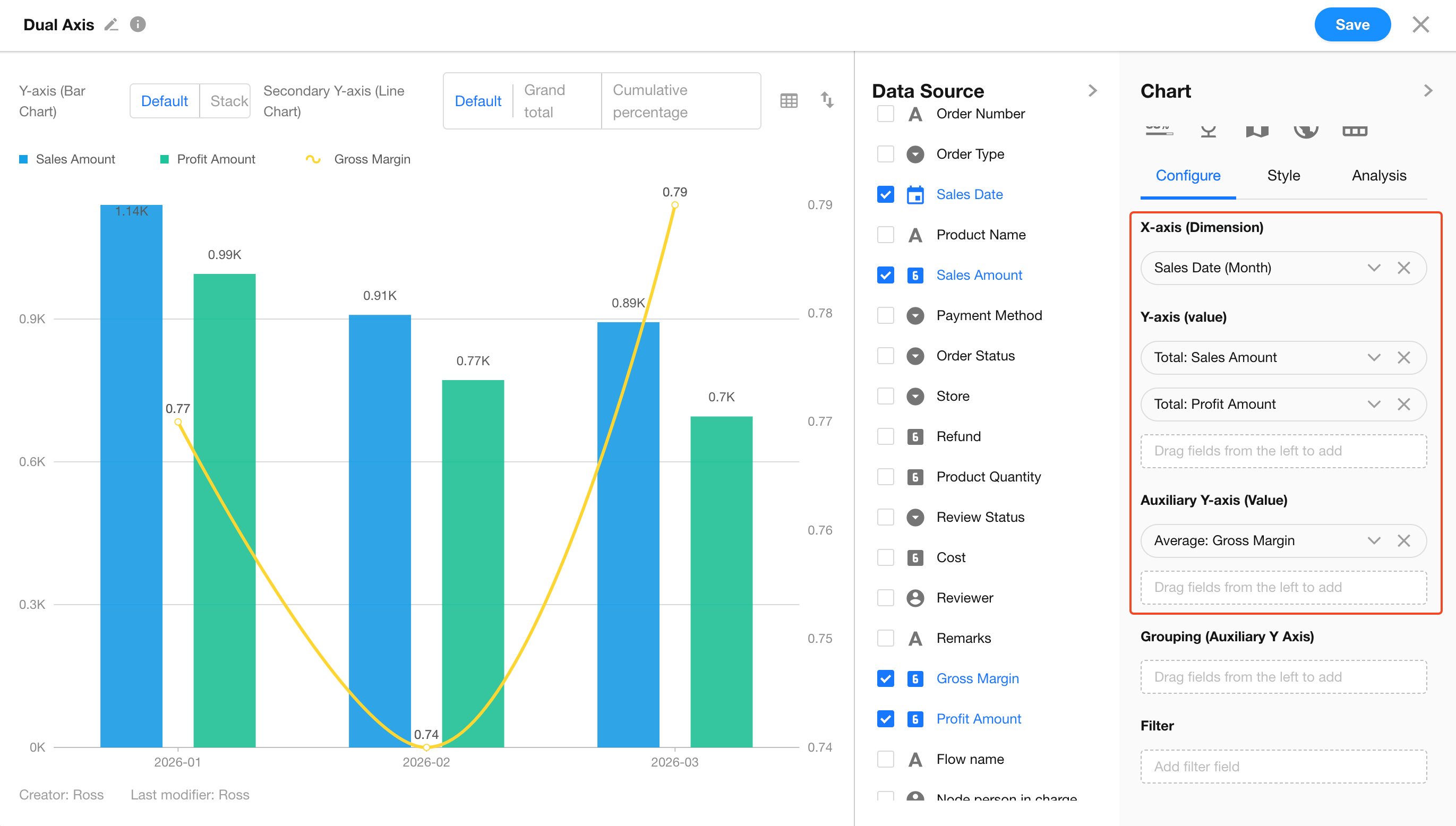

  2. The X-axis supports only one field, while the Y-axis can support multiple numeric fields or split values from a single field.

  3. By default, the left Y-axis uses bar charts, and the right Y-axis uses line charts.

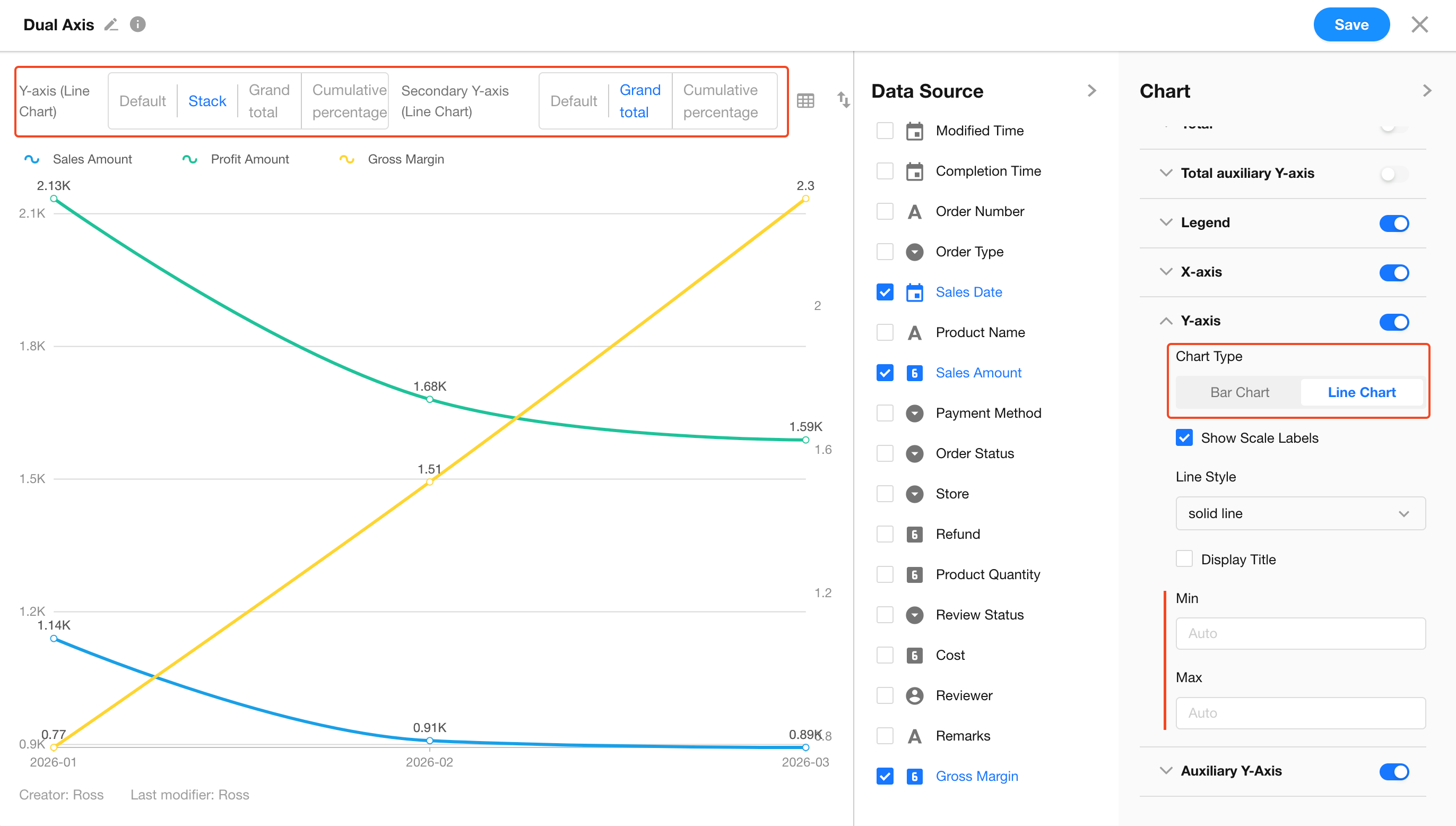

  4. When both X-axis and Y-axis are line charts, only one field can be set per Y-axis. Adding a second field will automatically convert the left Y-axis to a bar chart.

5. Save the Chart​

Click Save to complete your configuration.
